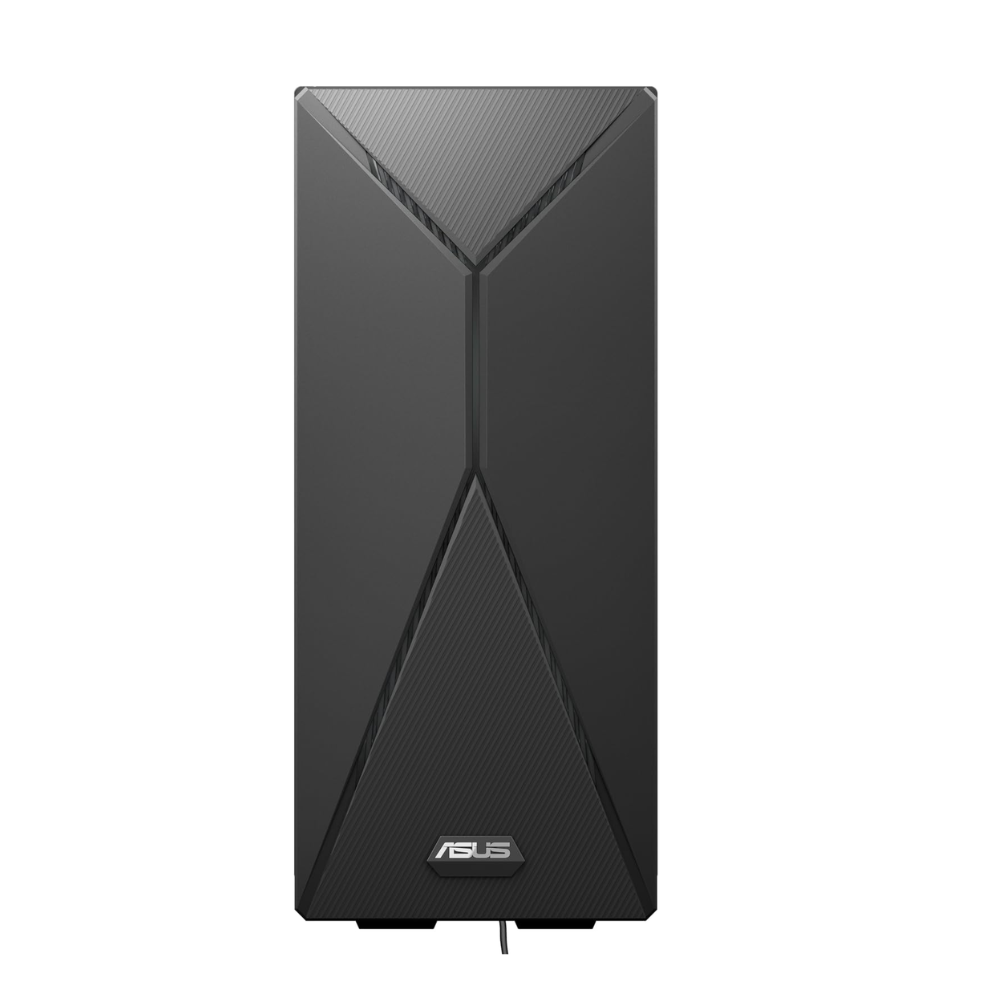

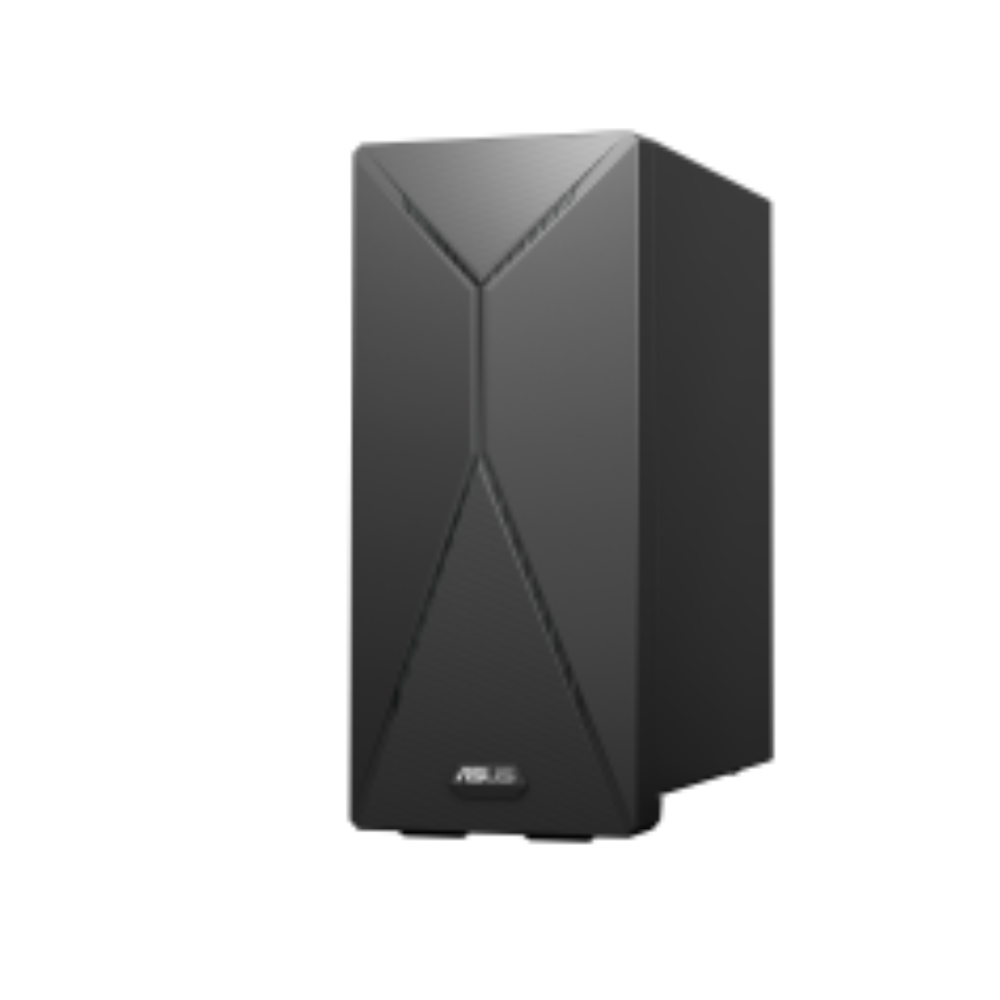

ASUS S5 S501MER Gaming Desktop PC Intel Core i5 14400F 16GB Ram 1TB SSD 8GB RTX 4060 Graphics

ASUS S5 S501MER Gaming Desktop PC  Specifications

1. General Information

• Model: ASUS S5 S501MER

• Type: Tower Desktop PC

• Color: Black

• Operating System: Configurable (Windows 11 Home, Windows 11 Pro, or Non-preinstalled OS)

• Dimensions (W x D x H): 16.00 x 31.89 x 36.78 cm (6.30″ x 12.56″ x 14.48″)

• Weight: 5.90 kg (13.01 lbs)

2. Processor (CPU)

• Brand: Intel®

• Family: 14th Generation Intel® Core™ i5

• Model: Intel® Core™ i5-14400

• Cores/Threads: 10 Cores / 16 Threads (6 Performance-cores + 4 Efficient-cores)

• Max Turbo: Up to 4.7 GHz

• Cache: 20 MB L3 Smart Cache

• Base Clock: 2.5 GHz

• Chipset: Intel® B760 Chipset

3. Memory (RAM)

• Capacity: 16 GB DDR5

• Speed: 5600 MT/s (Standard configuration for 16GB U-DIMM)

• Configuration: 1 x 16 GB (or 2 x 8 GB depending on specific build) – uses U-DIMM slots

• Slots: 2 x DDR5 U-DIMM slots

• Maximum Supported: Up to 64 GB

4. Storage

• Type: M.2 2280 NVMe™ PCIe® 4.0 SSD

• Capacity: 1 TB

• Additional SATA Ports: 4 x SATA 6.0Gb/s ports for adding HDDs/SSDs

5. Graphics (GPU)

• Model: NVIDIA® GeForce RTX™ 4060 DUAL

• Memory: 8 GB GDDR6 dedicated

• AI Performance: Up to 242 AI TOPs

• Output Ports: 3x DisplayPort (DP), 1x HDMI

6. Audio

• Audio: High Definition 7.1 Channel Audio

• Rear Audio Ports: 3 x Audio jacks (line-in/line-out/mic)

7. Networking & Connectivity

• Wireless: Configurable:

  • Wi-Fi 6 (802.11ax) (1×1) + Bluetooth® 5.2

  • Wi-Fi 6 (802.11ax) (2×2) + Bluetooth® 5.2

  • Wi-Fi 6E (802.11ax) (Triple band) (2×2) + Bluetooth® 5.4

• LAN (Ethernet): 1x RJ45 Gigabit Ethernet

8. Front I/O Ports

• USB Type-C®: 1x USB 3.2 Gen 2 Type-C®

• USB Type-A: 3x USB 3.2 Gen 1 Type-A

• Audio: 1x 3.5mm combo audio jack

9. Rear I/O Ports

• USB 2.0 Type-A: 2x

• USB 3.2 Gen 1 Type-A: 2x

• Video Ports (from motherboard): 1x HDMI 2.1b, 1x VGA Port, 1x DisplayPort 1.4

• Legacy Ports: 2x PS/2

• RJ-45 Ethernet: 1x Gigabit

• Audio Jacks: 3x

• GPU Outputs: 3x DisplayPort, 1x HDMI (from RTX 4060 card)

10. Expansion Slots

• PCIe® 4.0 x 16: 1x (occupied by GPU)

• PCIe® 3.0 x 1: 2x

• M.2 Connector for WiFi: 1x

• DDR5 U-DIMM Slots: 2x (for RAM)

11. Power Supply

• Type: 500W power supply (80+ Bronze, peak 550W) – This is the supported spec for the RTX 4060 configuration

12. Software & Built-in Apps

• ASUS Software: MyASUS

• MyASUS Features: System diagnosis, Fan profile, AppDeals, Link to MyASUS

13. Security & Compliance

• Security: Kensington Security Slot™ (7x 3mm), Trusted Platform Module (TPM) 2.0

• Ecolabels: RoHS, REACH

14. Cooling

• Type: Air Cooler
