ASUS ROG STRIX G16CHR Gaming PC Intel Core i7 14400KF 32GB Ram 1TB SSD 12GB RTX 4070 Graphics

ASUS ROG STRIX G16CHR Gaming PC Specifications

1. General Information

• Model Series: ASUS ROG STRIX G16CHR

• Type: Gaming Desktop PC

• Operating System: Windows 11 Pro

• Chassis Color: Gray

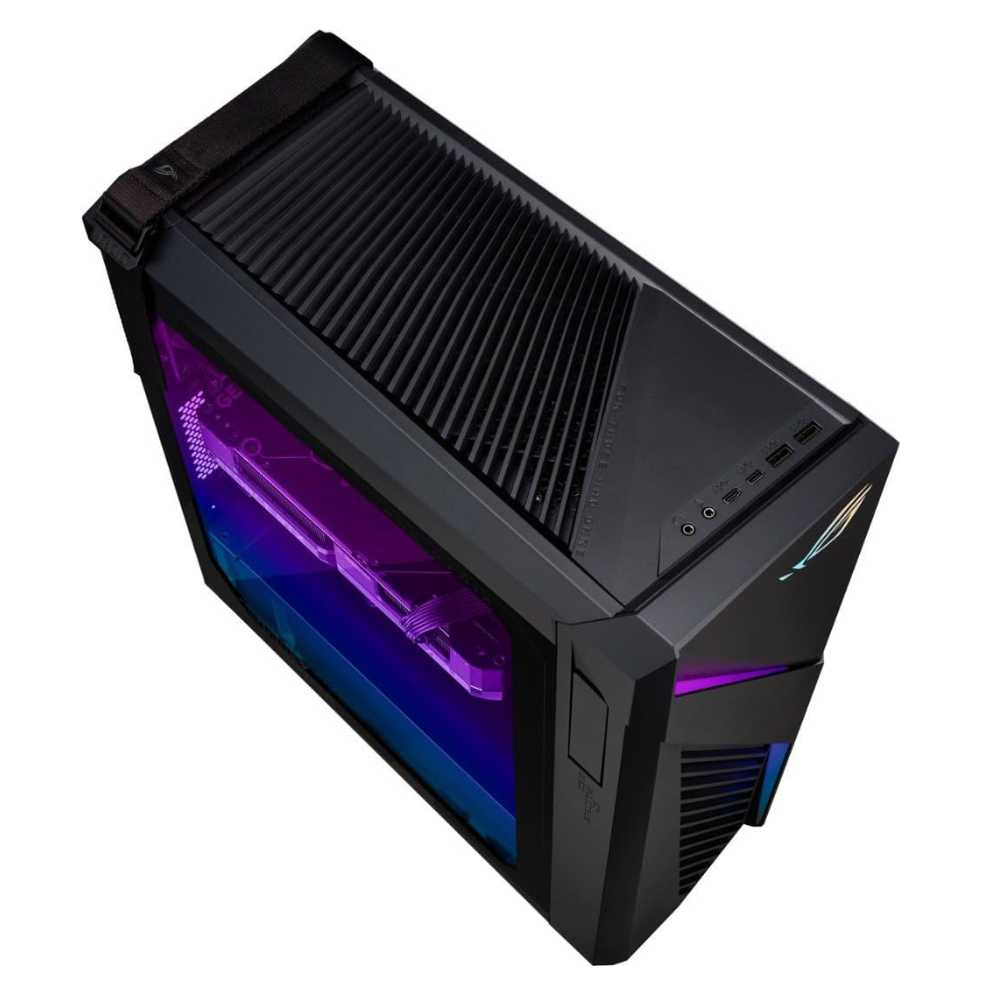

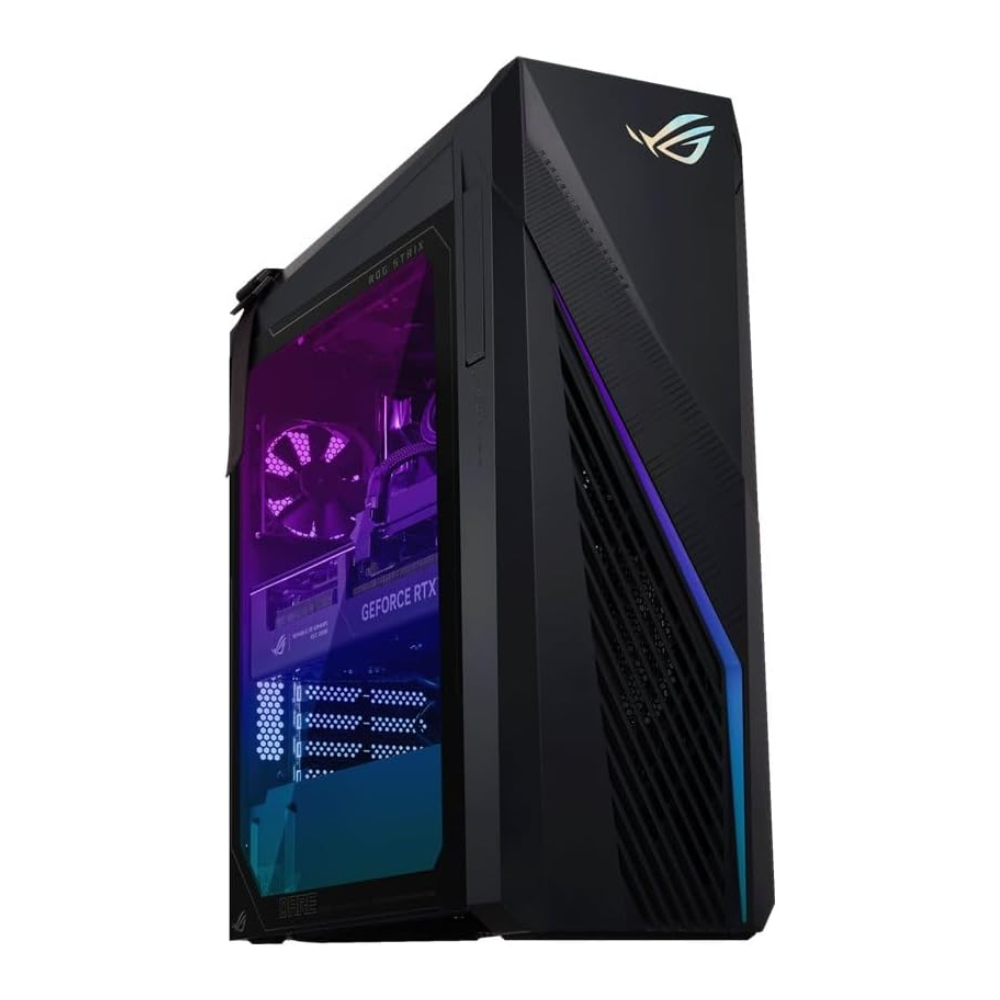

• Chassis Material: Steel chassis with mesh front panel, transparent EMI glass side panel, double D-ring carrying handle, hidden headset holder

• Dimensions (W x D x H): 18.50 x 42.10 x 51.00 cm (7.28″ x 16.57″ x 20.08″) – excluding chassis feet and GPU bracket

• Weight: 11.00 kg (24.25 lbs)

2. Processor (CPU)

• Brand: Intel®

• Family: 14th Generation Intel® Core™ i7

• Model: Intel® Core™ i7-14700KF

• Cores/Threads: 20 Cores / 28 Threads (8 Performance-cores + 12 Efficient-cores)

• Performance-core Base Clock: 3.4 GHz

• Performance-core Max Turbo: Up to 5.6 GHz

• Efficient-core Max Turbo: Up to 4.3 GHz

• Cache: 33 MB Intel Smart Cache

• TDP: 125W (base) / up to 181W (turbo)

• Socket Type: LGA 1700

• Integrated Graphics: No (KF series processor requires dedicated GPU)

3. Motherboard & Chipset

• Chipset: Intel® B760 Chipset

• Form Factor: Custom ROG B760 motherboard

4. Memory (RAM)

• Capacity: 32 GB DDR5

• Speed: 5600 MT/s (5600 MHz)

• Configuration: 2 x 16 GB (Dual-channel) – optimal for gaming performance

• Slots: 4 x DDR5 U-DIMM slots (288-pin)

• Maximum Supported: Up to 64 GB (4 x 16GB)

• Memory Architecture: Dual-channel, supports unbuffered memory

5. Storage

• Primary Drive: 1 TB M.2 2280 NVMe™ PCIe® 4.0 SSD (Performance)

• Secondary Expansion: 2 x M.2 2280 connectors for additional storage

• SATA Ports: 6 x SATA 6.0Gb/s ports for adding HDDs/SSDs

• Storage Controller: 1 x SATA controller, 6 channels

6. Graphics (GPU)

• Model: NVIDIA® GeForce RTX™ 4070 DUAL 12GB

• Memory: 12 GB GDDR6X dedicated

• AI Performance: Up to 456 AI TOPs (for RTX 4070)

• Output Ports: 3x DisplayPort 1.4a, 1x HDMI 2.1

• Max Monitors Supported: 3 (simultaneous)

• Architecture: NVIDIA Ada Lovelace, DLSS 3.0 support

7. Audio

• Audio Codec: High Definition 7.1 Channel Audio

• Audio Features: Dolby Atmos support, Two-Way AI Noise-Cancellation technology

• Rear Audio Ports: 3 x Audio jacks (line-in/line-out/microphone) supporting 7.1 channel output

8. Networking & Connectivity

• Wireless: Wi-Fi 6E (802.11ax) (Triple band) 2×2

• Bluetooth: Bluetooth® 5.3 or 5.4 wireless card

• LAN (Ethernet): 1x RJ45 Gigabit Ethernet (10/100/1000 Mbit/s)

• Features: Dual stream (2×2), MU-MIMO support

9. Front I/O Ports

• USB Type-C®: 2x USB 3.2 Gen 1 Type-C® (5Gbps signaling rate)

• USB Type-A: 2x USB 3.2 Gen 1 Type-A (5Gbps signaling rate)

• Audio: 1x Headphone-out, 1x Mic-in (3.5mm combo jacks)

10. Rear I/O Ports

• USB 2.0 Type-A: 4x

• USB 3.2 Gen 2 Type-A: 2x (10Gbps signaling rate)

• Video (from motherboard): 1x DisplayPort 1.4, 2x HDMI

• Legacy Ports: 1x PS/2 Keyboard/Mouse combo port

• RJ-45 Ethernet: 1x Gigabit LAN

• Audio Ports: 3x Audio jacks (line-in/line-out/microphone)

• GPU Outputs: 3x DisplayPort 1.4a, 1x HDMI 2.1 (from RTX 4070 card)

11. Expansion Slots

• PCIe® 4.0 x16: 1x (occupied by GPU) – supports up to 3 x PCIe 4.0 x16 when using vertical GPU mount

• PCIe® 4.0 x1: 2x (available)

• M.2 Connectors: 2x M.2 2280 for storage, 1x M.2 for WiFi

• Total Slots: 4 (total) / 3 (free) x PCIe 4.0 x16 configurations vary

12. Power Supply

• Type: Internal PSU 850W (80+ Gold, peak 900W) – for RTX 4080 configurations

• For RTX 4070 configurations: 750W power supply (80+ Gold, peak 800W)

• Efficiency: 80 PLUS Gold certified

• Full Range: 115V / 230V auto-switching

13. Cooling System

• CPU Cooling: 240mm Liquid Cooler for i7-14700KF configurations ; 105W Air Cooler for standard configurations

• Chassis Cooling: Mesh front panel designed for enhanced airflow, customizable fan curves via Armoury Crate

14. Software & Gaming Features

• Gaming Hub: Armoury Crate – central control for performance monitoring, RGB lighting (Aura Sync), fan profiles, and system vitals

• AURA SYNC: Yes – customizable RGB lighting for front panel, interior, and peripherals

• Aura Creator: Advanced RGB customization software

• Mobile App: Armoury Crate companion app for Android/iOS

• Built-in Apps: MyASUS (system diagnosis, fan profiles, AppDeals, Link to MyASUS)

• Audio Software: Dolby Atmos sound tuning, Two-way AI Noise Cancelation

15. Additional Features

• Chassis Design: Double D-ring carrying handle, hidden headset holder inside chassis, mesh front panel

• Security: Kensington Security Slot™, Trusted Platform Module (TPM) 2.0 support

• Included in the Box (Optional): Gaming mouse (USB), Gaming keyboard (USB) ; varies by configuration

• Ecolabels & Compliances: RoHS, REACH
