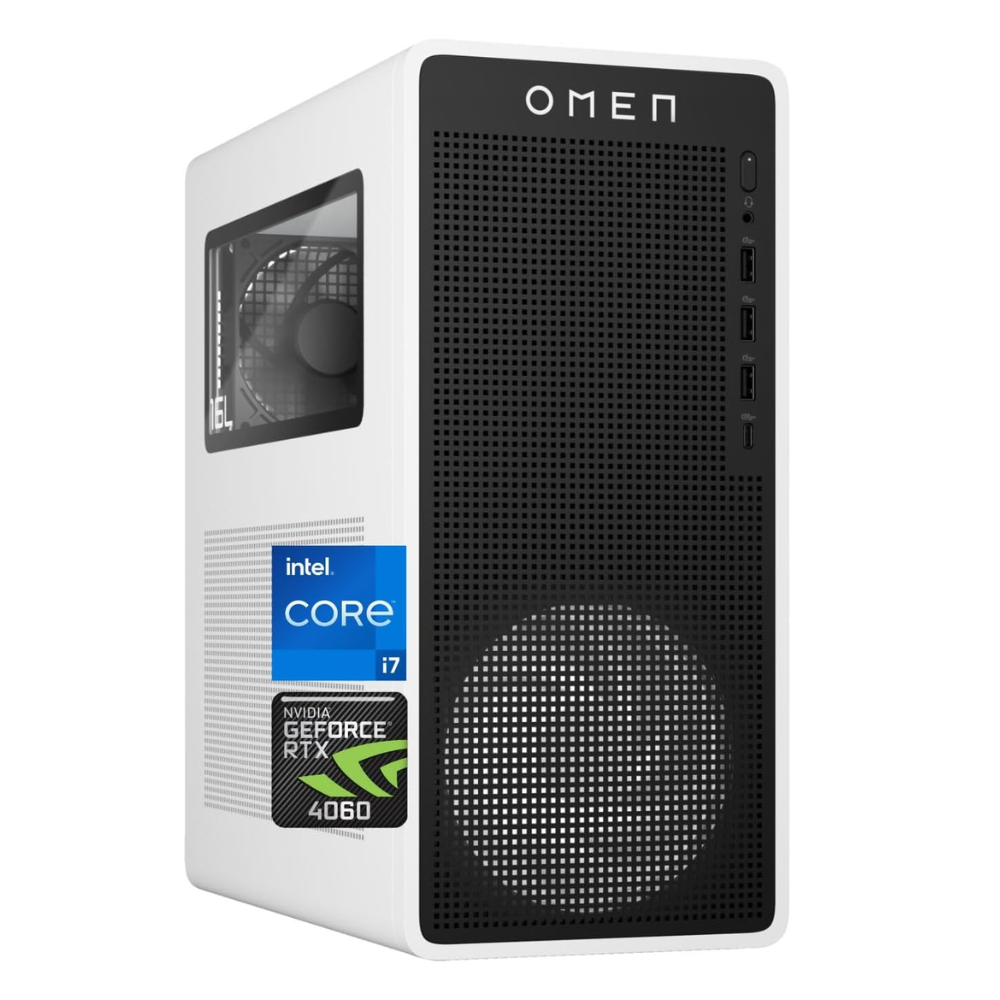

HP OMEN 16L TG03 Gaming Desktop PC Intel Core i7 14700F (20 Cores) 16GB Ram 1TB SSD 8GB RTX 4060 Graphics

HP OMEN 16L TG03 DesktopSpecifications

1. General Information

• Model Series: HP OMEN 16L TG03

• Type: Gaming Desktop PC

• Operating System: Windows 11 pro

• Chassis Color: Shadow Black Metal

• Chassis Material: Metal construction with 55% post-consumer recycled plastic and 20% recycled metal

• Dimensions (W x D x H): 15.5 x 33.7 x 30.8 cm (6.1 x 13.26 x 12.12 inches)

• Weight: 5.57 – 5.61 kg (12.28 – 12.37 lbs)

2. Processor (CPU)

• Brand: Intel®

• Family: 14th Generation Intel® Core™ i7

• Model: Intel® Core™ i7-14700F

• Cores/Threads: 20 Cores / 28 Threads (8 Performance-cores + 12 Efficient-cores)

• Performance-core Base Clock: 2.10 GHz (P-cores)

• Efficient-core Base Clock: 1.50 GHz (E-cores)

• Max Turbo: Up to 5.40 GHz with Intel® Turbo Boost Technology

• Cache: 33 MB Intel Smart Cache

• TDP: 65 W

• Socket Type: LGA 1700

• Integrated Graphics: No (F series processor requires dedicated GPU)

3. Motherboard

• Chipset: Intel® H770

• Memory Sockets: 2 x DDR5 DIMM slots

• Expansion Slots: 3 M.2 slots (2 for SSD, 1 for WLAN)

4. Memory (RAM)

• Capacity: 16 GB DDR5

• Speed: 5600 MT/s  – Note: Your request specifies 5800 MHz, but official HP specs confirm 5600 MHz

• Configuration: 2 x 8 GB (Dual-channel)

• Maximum Supported: Up to 32 GB

5. Storage

• Type: PCIe® Gen4 NVMe™ M.2 SSD

• Capacity: 1 TB

• Additional Storage Options: Some configurations include a 3.5″ HDD slot for expansion

6. Graphics (GPU)

• Model: NVIDIA® GeForce RTX™ 4060

• Memory: 8 GB GDDR6 dedicated

• Form Factor: Dedicated graphics card

• Rear I/O Connectors (via GPU):

  • Typically 1x HDMI 2.1a

  • 3x DisplayPort 1.4a

• Maximum Resolution Support: 7680 x 4320 at 60Hz (via DisplayPort)

• PCIe Interface: PCIe Gen 4 x16

7. Audio

• Audio Features: OMEN Audio Control with DTS:X Ultra support

• Audio Ports (Rear): 1x line-in, 1x line-out, 1x microphone

• Audio Ports (Front): 1x headphone/microphone combo jack

8. Networking & Connectivity

• Wireless: Realtek Wi-Fi 6 RTL8852BE-VT (2×2) 802.11a/b/g/n/ax

• Bluetooth: Bluetooth® 5.4

• LAN (Ethernet): Gigabit Ethernet (Realtek RTL8118 or Realtek RTL8125BGH-CG on some models)

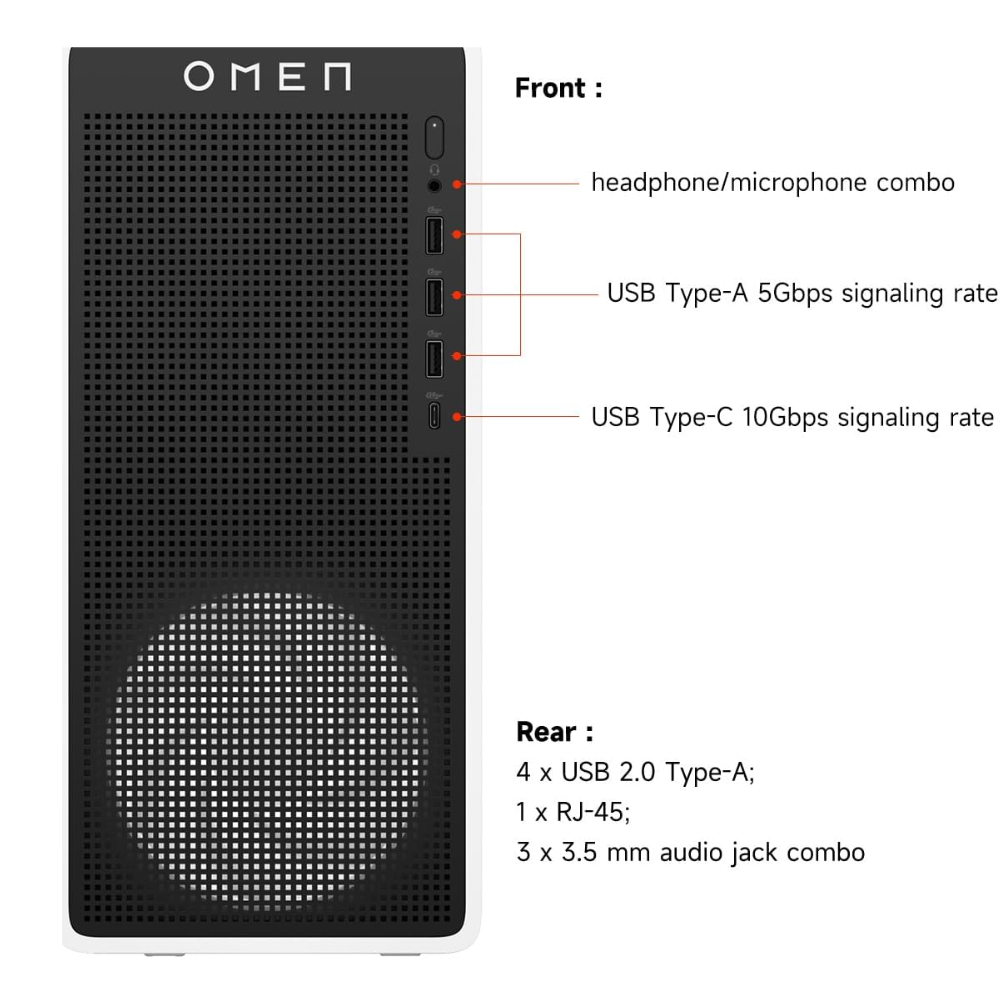

9. Front I/O Ports

• USB Type-C®: 1x (10 Gbps signaling rate)

• USB Type-A: 3x (5 Gbps signaling rate)

• Audio: 1x headphone/microphone combo jack

• Power Button

10. Back I/O Ports

• USB 2.0 Type-A: 4x

• RJ-45 Ethernet: 1x (Gigabit)

• Audio Ports: 1x line-in, 1x line-out, 1x microphone

• Security Lock Slot: Kensington Security Lock slot

• Padlock support

• GPU Ports: 1x HDMI 2.1a, 3x DisplayPort 1.4a

11. Power Supply

• Type: Internal PSU 500 W

• Efficiency Rating: 80 PLUS Platinum certified

• Full Range: 115 V / 230 V auto-switching

12. Cooling System

• Technology: OMEN Tempest Cooling Technology with optimized airflow design

• Cooling Features: Customizable fan curves via OMEN Gaming Hub

13. Software & Gaming Features

• Gaming Hub: OMEN Gaming Hub for performance tuning, lighting control, and system vitals

• Pre-installed Software:

  • Microsoft Windows 11 pro

  • Microsoft office

14. Additional Features

• Sustainability: 55% post-consumer recycled plastic, 20% recycled metal in construction

• Security: TPM 2.0 support, Kensington Security Lock slot

• Disc Drive: None included

• Warranty: 2-year limited warranty (2/2/0) includes 2 years of parts and labor  – *Note: Warranty varies by region (1-3 years)
