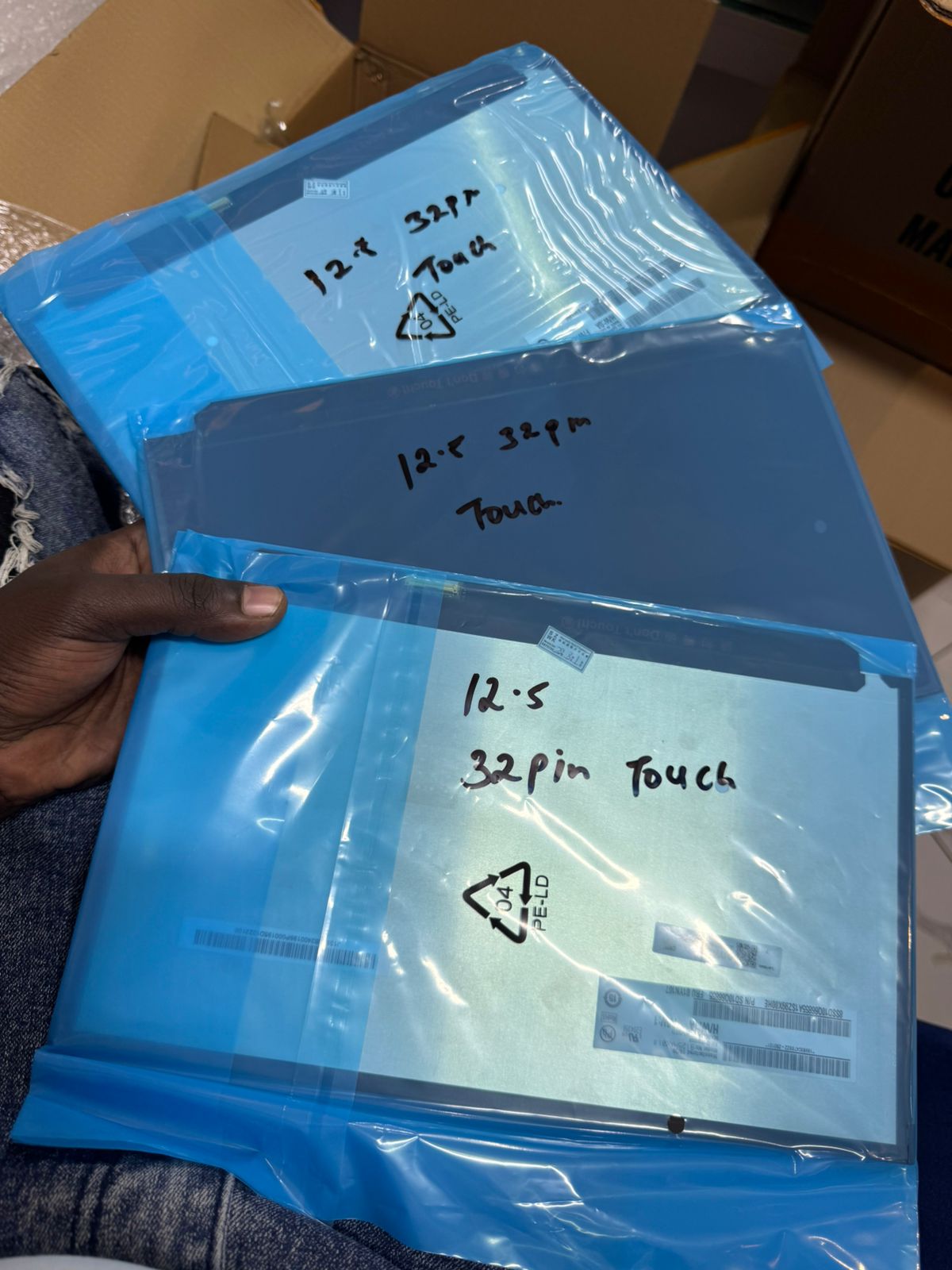

Lenovo ThinkPad X280 12.5 inch Touch Screen Replacement

Name: Lenovo ThinkPad X280 12.5 inch Touch Screen Replacement
Brand: Lenovo
SKU: 2121
Availability: InStock

Original price was: KSh15,000.Current price is: KSh12,000.

WhatsApp Order

Compatible Model: for Lenovo ThinkPad X280 20KF005HUS 20KF005JUS 20KF005KUS
Size: 12.5 inch
Backlight: LED LCD
LCD Connector: EDP 40pins
Resolution: 1920×1080 -IPS

Category: screen replacement Tags: Lenovo ThinkPad X280 12.5 inch Touch Screen Replacement, M125NWF4 Brand: Lenovo

Description
Reviews (0)

Lenovo ThinkPad X280 12.5 inch Touch Screen Replacement

Step 1: Find a replacement part

The replacement part needed is the complete LCD screen and touch digitizer assembly.

Specifications: 12.5-inch, 1920×1080 resolution, IPS panel, 40-pin EDP connector.
Part numbers: Search for a replacement assembly compatible with your specific ThinkPad X280 model number.
Note on parts: The replacement assembly often does not include the bezel or other attachments,
IVO M125NWF4 or LG LP125WF2-SPB2.

Step 2: Prepare for disassembly

Backup data and save your work before shutting down your computer.
Unplug the power adapter and all cables from the laptop.
Use an ESD-safe workspace to prevent static damage to the components.

Step 3: Remove the old display assembly

Pry off the screen bezel: Use a thin plastic opening tool or metal spudger to carefully pry the plastic bezel away from the edges of the screen.
Separate the screen: Once the bezel is removed, the LCD panel will be exposed.
Disconnect the cables: Gently pull the screen away from the lid, laying it face down on the keyboard.
Remove the adhesive tape: Use tweezers to peel back any tape securing the display connector.
Lift the locking bracket: Gently lift the small locking bracket on the video cable connector to release the cable.
Unplug the cables: Disconnect the video cable and any other attached cables.
Remove the old screen from the laptop. Lenovo ThinkPad X280 touchscreen

Step 4: Install the new display assembly

Connect the new screen: Reconnect the video and digitizer cables to the new display assembly. Gently press down on the locking bracket to secure the cable.
Position the new screen inside the display lid.
Before reassembly, test the new screen to ensure it is working correctly. Power on the laptop to check the display and touch functionality.
Reattach the bezel: Snap the plastic bezel back into place around the screen. Lenovo ThinkPad X280 touchscreen

Step 5: Finalize the replacement

Reassemble your device by following the disassembly instructions in reverse order.
Power on your Lenovo X280 and check that the touchscreen is fully responsive and the display is clear.
